Leofoto LS-324C X Version Ranger Series Tripod + Ballhead Set

The brand new version of the Ranger Series, the Leofoto LS-324CX Carbon Fiber Tripod improves upon the classic Leofoto Ranger Series tripods with the latest technology. This model features angle stops have also been improved to be more ergonomic. This new angle stop design allows for one handed operation for convenience. The Ranger Series has always been known for it's simplicity and compact size and weight.

  • Independent Leg Spread
  • Three Angle Positions: 23-, 55-, and 85°
  • 1/4"-20 threaded Accessory Socket for Monitor, Microphone, LED light or More
  • Removable Ballast Hook
  • Interchangeable Feet (3/8")
  • Carrying Case
  • Improved Ergonomic Angle Stops
  • 1/4"-20 threaded Accessory Socket
  • Rubber Feet (3/8") and Interchangeable Spikes
  • Carrying Case

Leofoto tripods feature light weight carbon fiber tubes to reduce weight while maintaining a high load capacity. The T6-6061 grade aluminum hardware is CNC machined and hard anodized, creating a durable and scratch resistant setup. The standard twist leg lock system can be quickly deployed with a quarter turn. With the tripod's variable leg angle positions, the tripod can be completely spread out, so the support can drop to a very low minimum height.

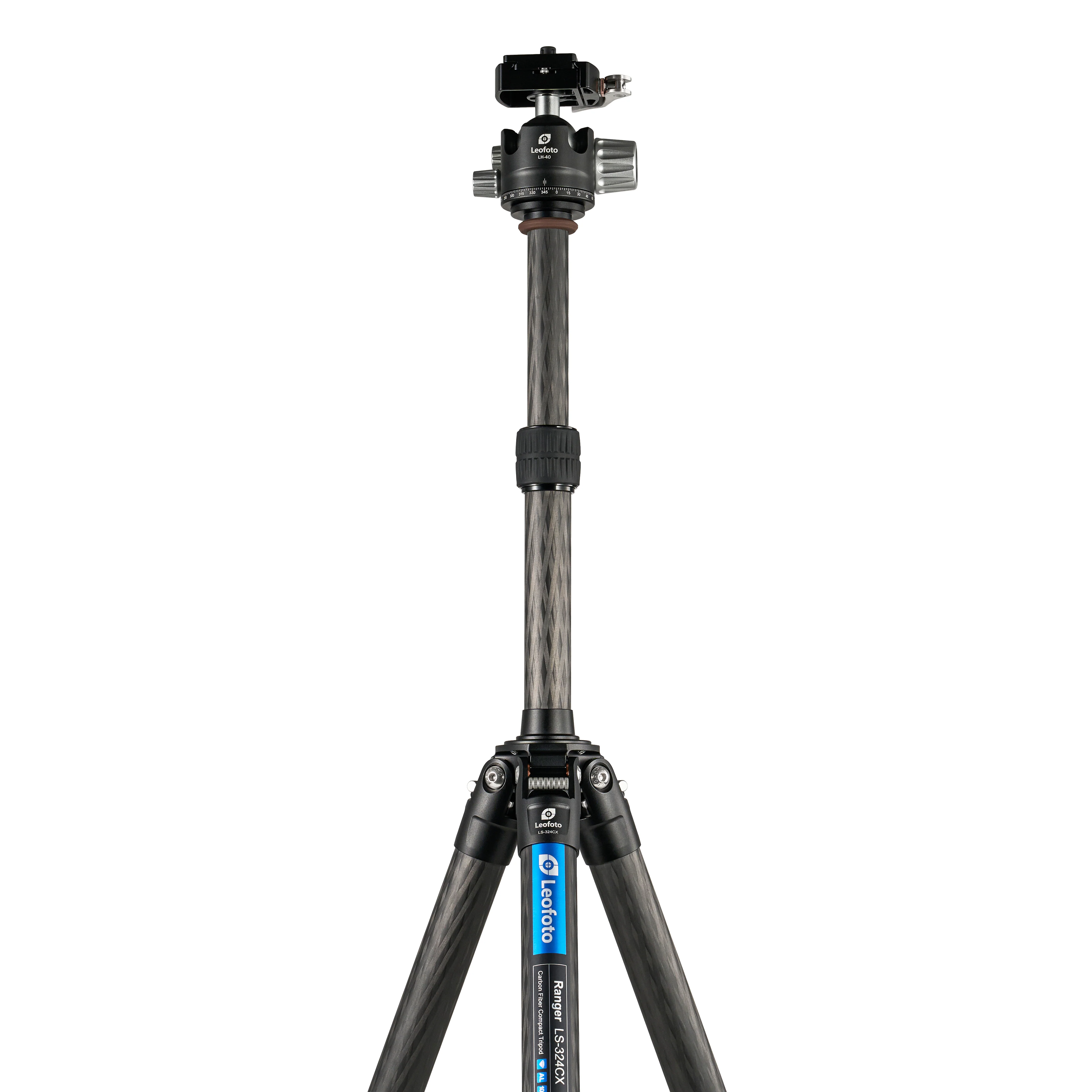

The included Leofoto DC-282C Carbon Fiber Add-On Column is an adjustable, two-section center column extension for tripods and monopods. Made up of two lightweight yet durable 10-layer carbon fiber, the DC-282C adds from 7.8 to 12.5" in height and is suitable for use with supports that have a load capacity of up to 35.2 lb. The column base has a diameter of 1.5" and an integrated 3/8"-16 threaded socket, and the top platform features a spring-loaded 3/8"-16 threaded tip that can be slid down to reveal a 1/4"-20 threaded tip, making it compatible with virtually any tripod head.

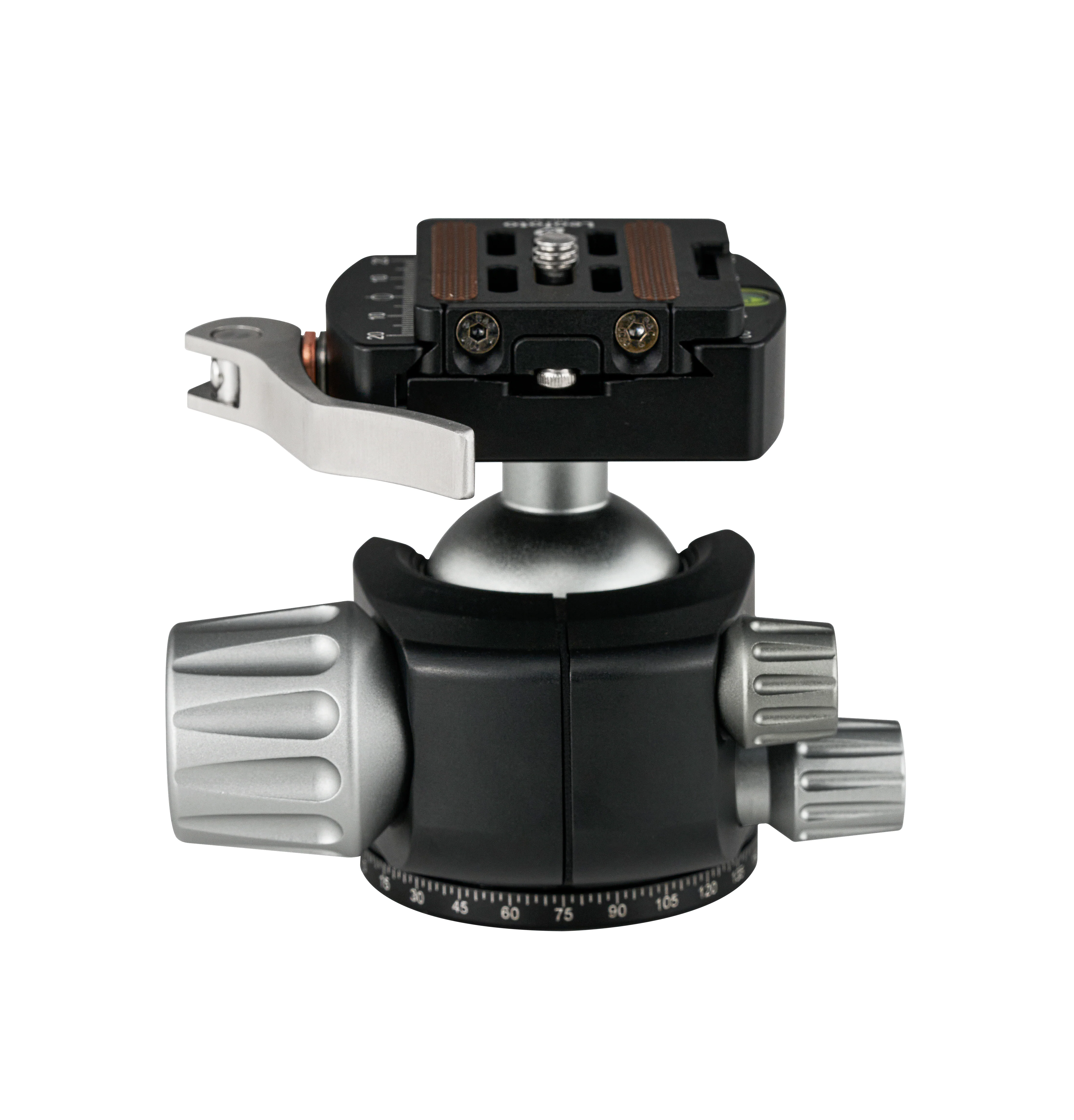

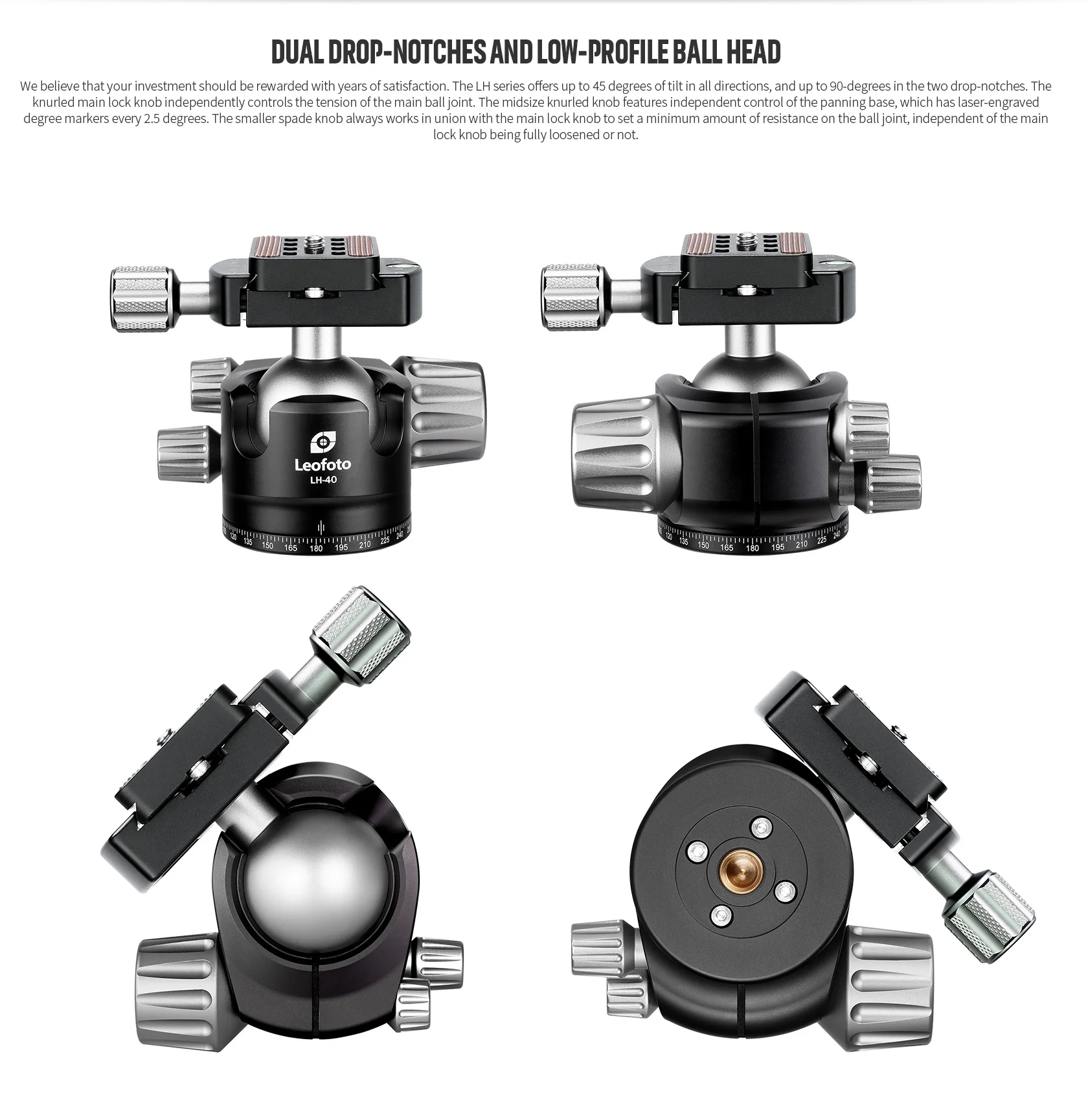

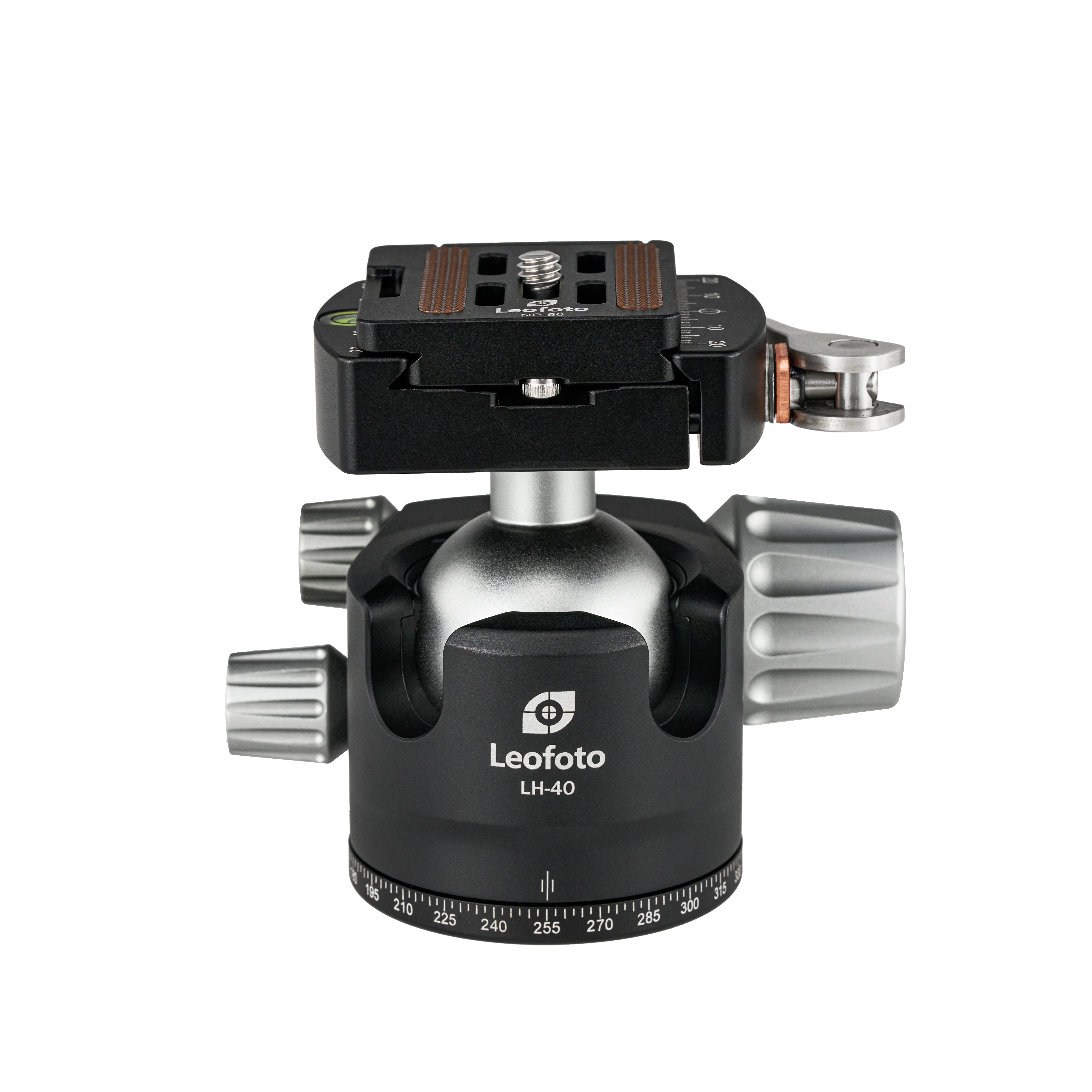

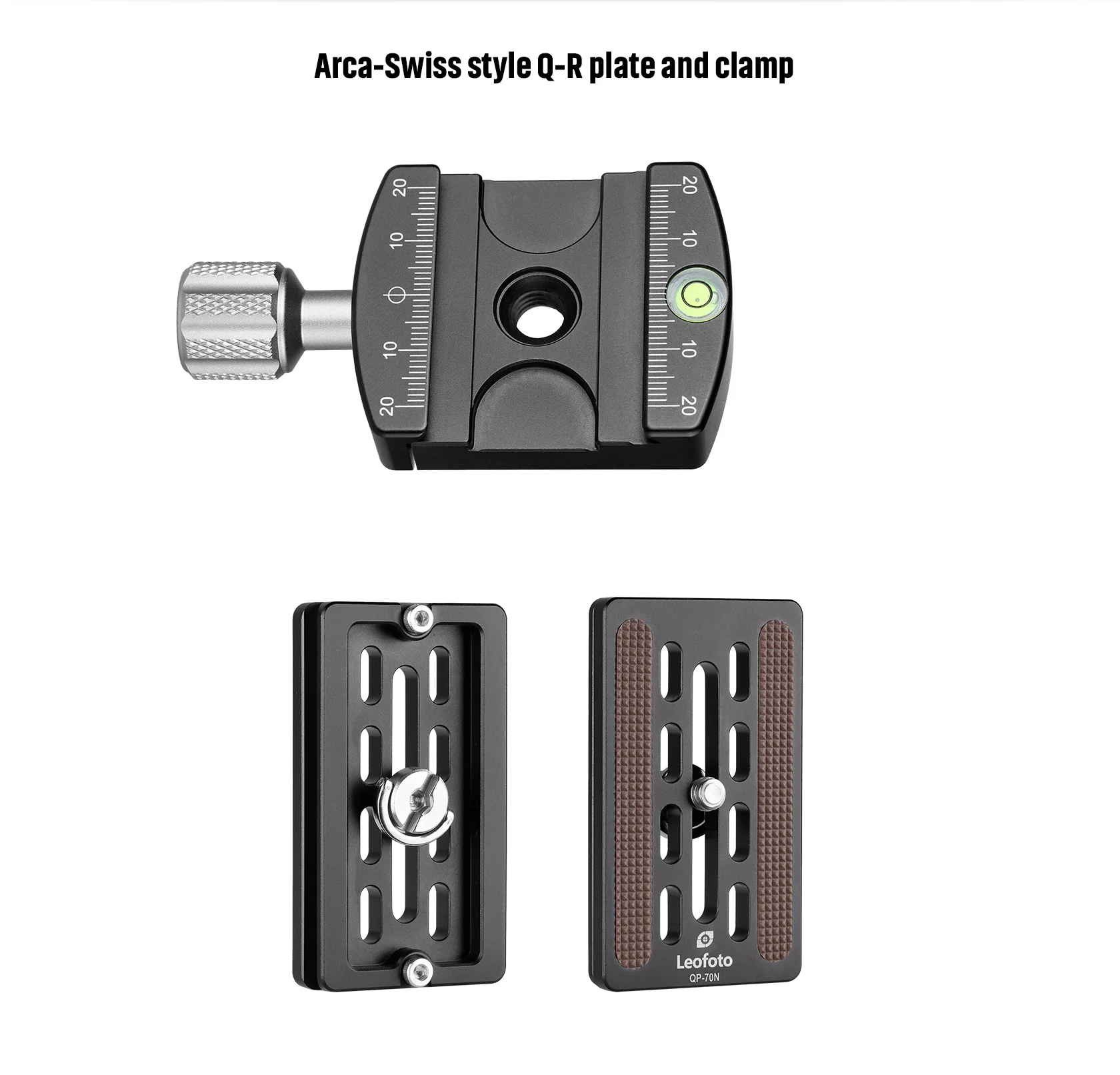

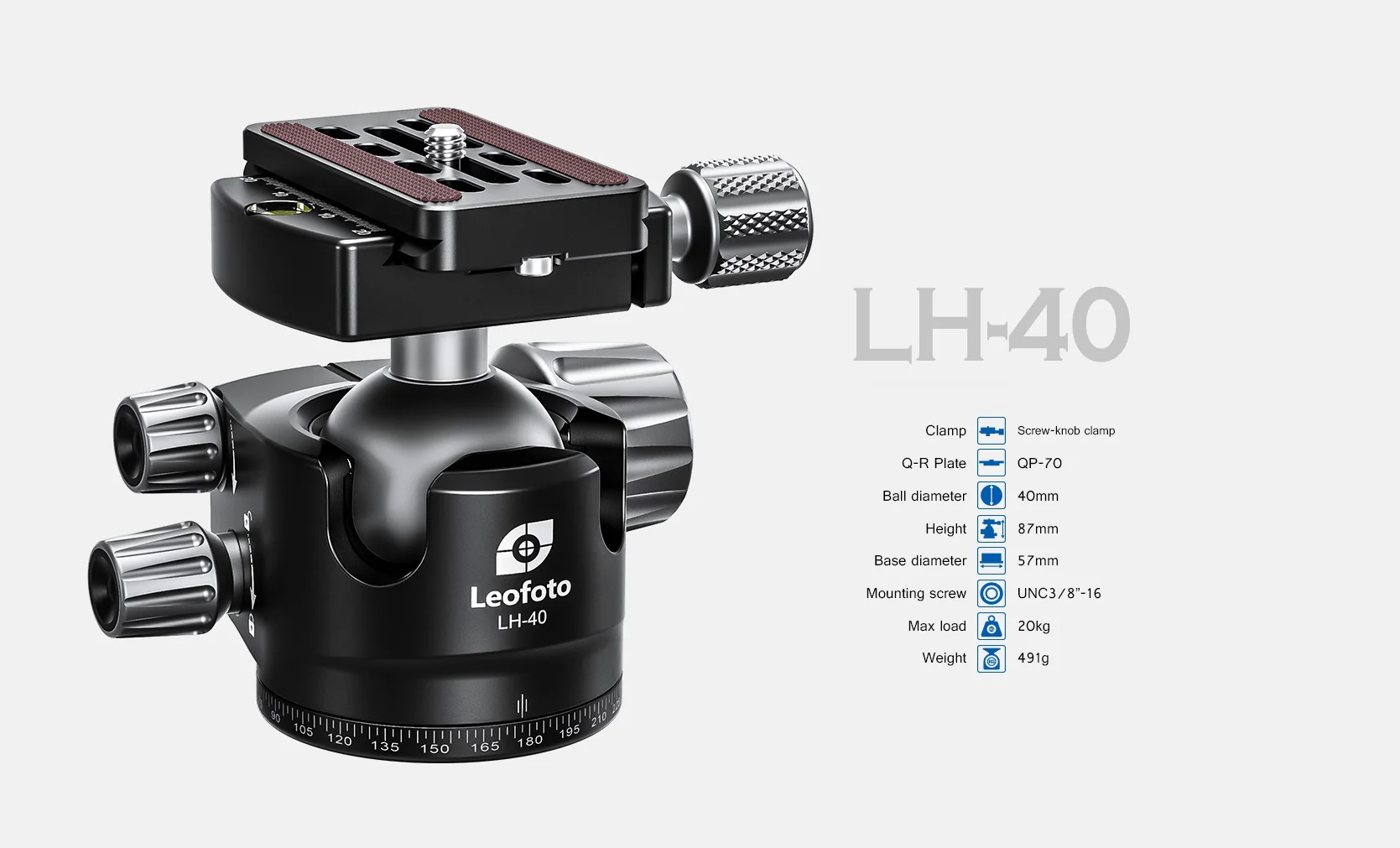

The included LH-40 Low-Profile Ball Head is lightweight aluminum and features an Arca-type compatible quick release system. A precisely-machined ball provides ultra-smooth movements and a large, ergonomically-designed locking knob, enables the movement of the ball head to be controlled. Laser-engraved scales on the panning base provide precise control during panorama shooting and dual drop notches provide the capability for rapidly changing from horizontal to vertical orientation.

LS-324CX Tripod + LH-40 Ball Head:
Max. height with center column: 1820mm / 71.65"
Max. height w/o center column: 1500mm / 59.06"
Min. height: 180mm / 7.09"
Folded length: 600mm / 23.62"
Leg Section: 4
Max load: 15kg / 33.07lb
Weight: 1.88kg / 4.14lb

Tubes: 32mm/28mm/25mm/22mm

Select Style
From $399.00
Leofoto LS-324C X Version Ranger Series Tripod + Ballhead Set
$399.00
