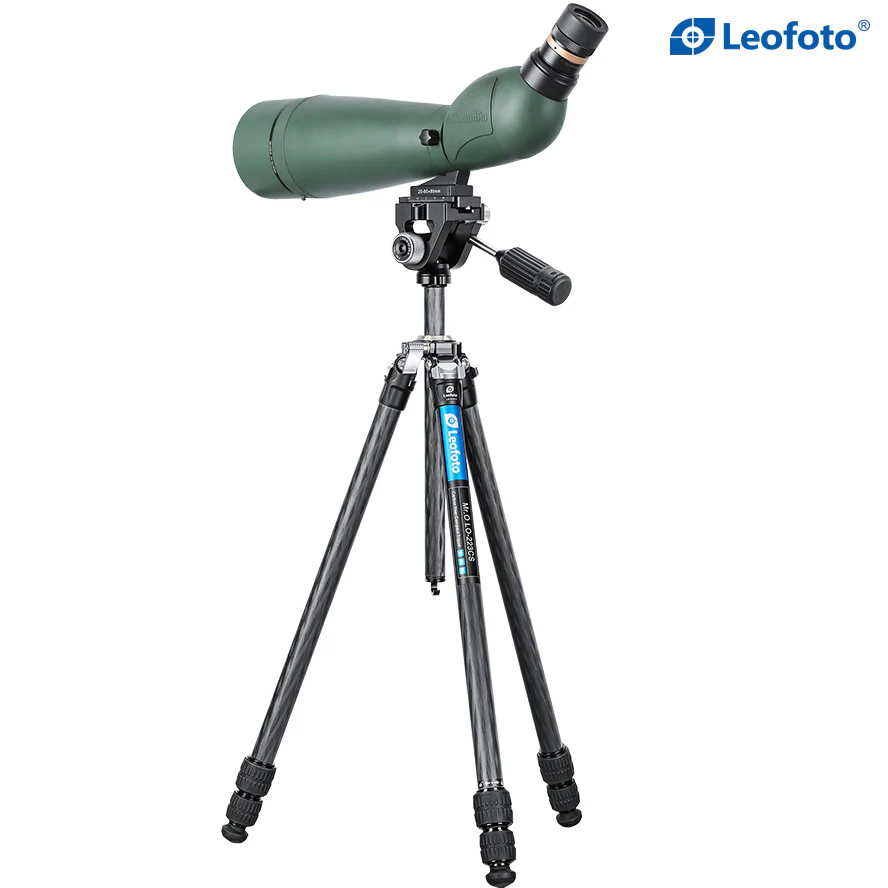

Leofoto LO-223CS/LO-224CS + SW-02 Carbon Fiber Tripod + 2-Way Pan Head Kit for Binoculars | 22 lb Max Load

Leofoto LO-223CS (3 Leg Section) CF Tripod:

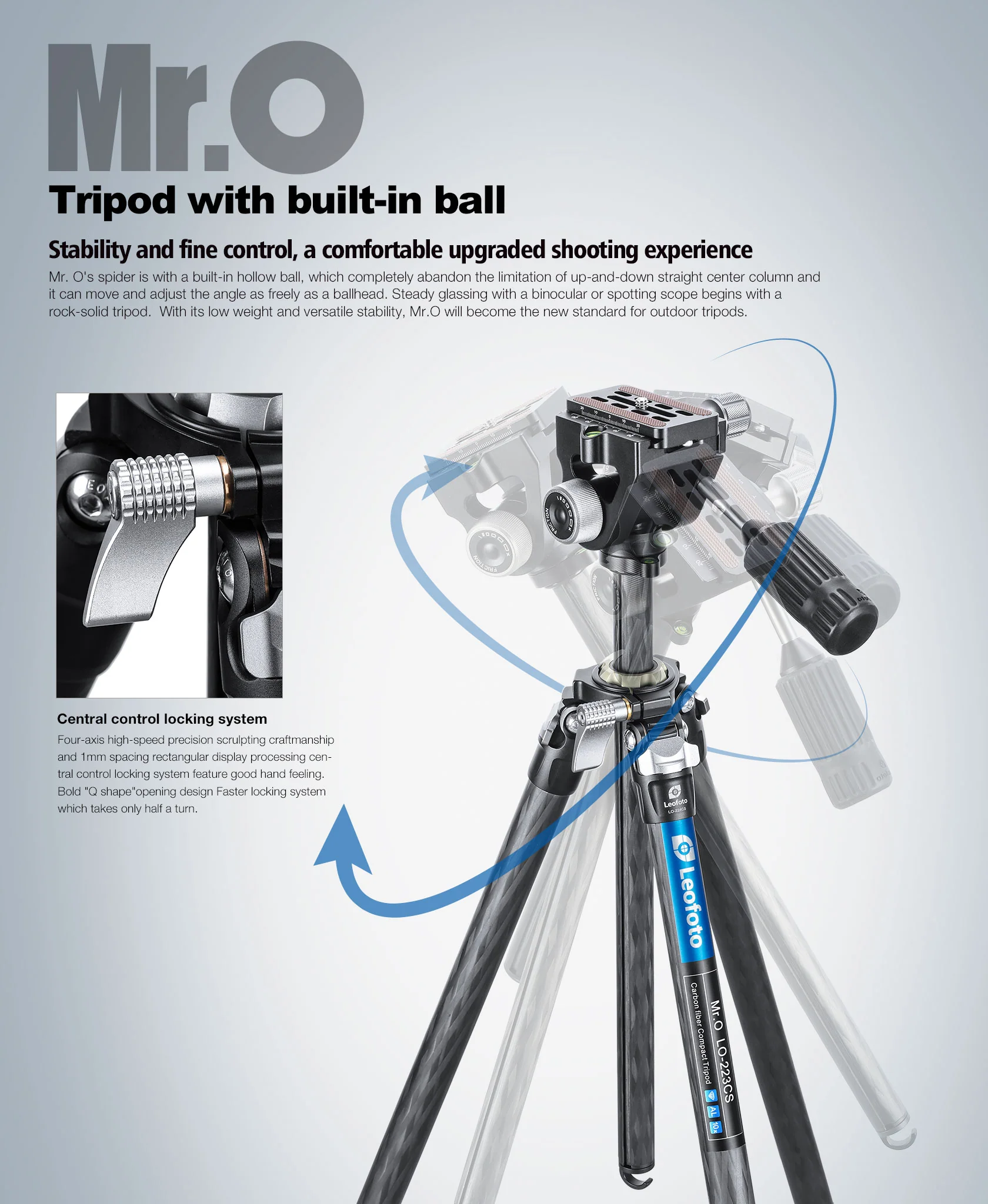

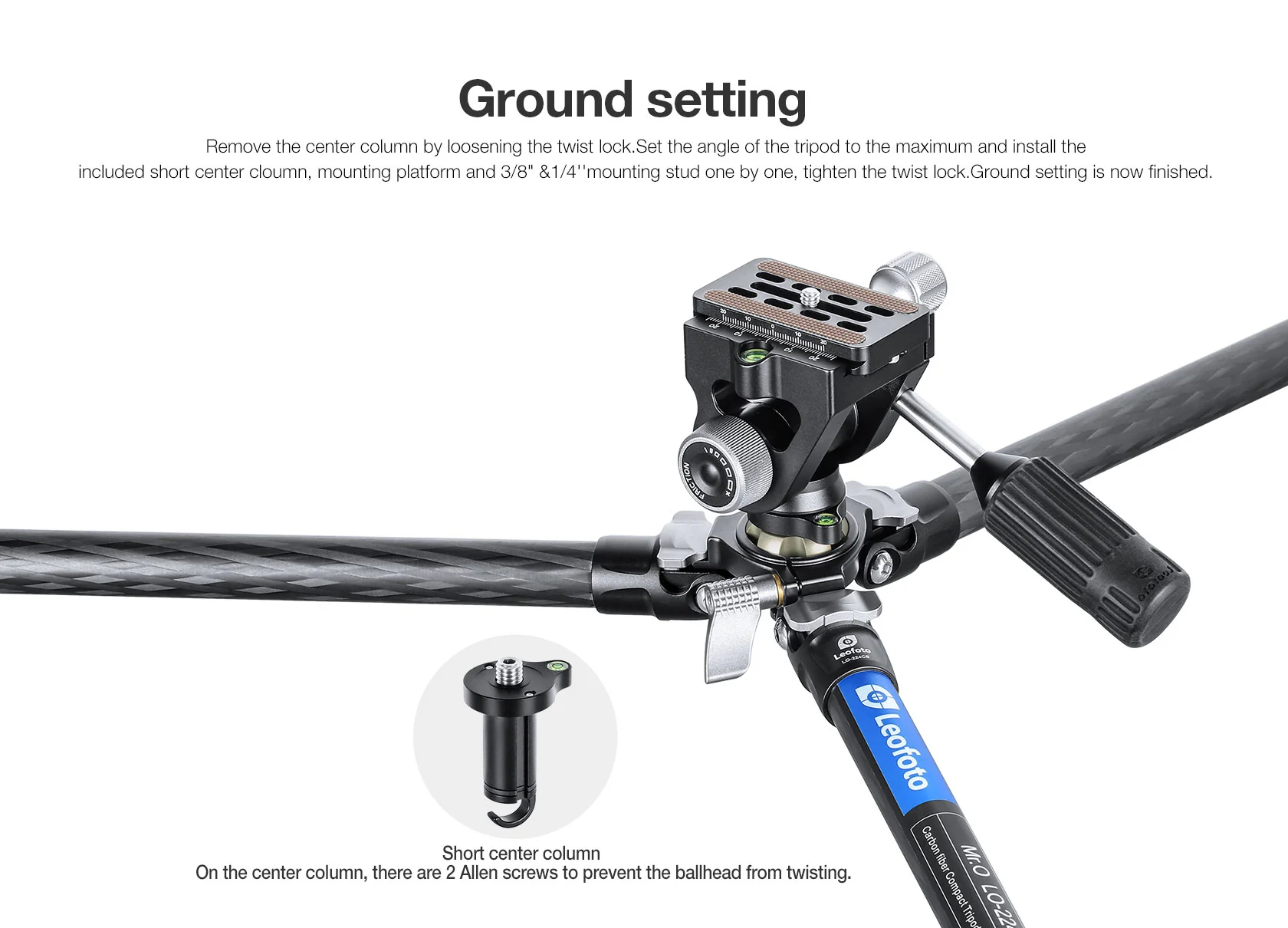

The Leofoto LO Mr. O Series Carbon Fiber Tripod with Built-In Hollow Ball is a lightweight and versatile tripod featuring a hollow ball design that allows the center column to be free of the limitation from linear vertical movement, adjusting its angle freely like a ball head. This adjustable center column positioning works along with the independent leg spread to allow quick leveling of a tripod head when shooting on uneven terrain. In addition to being easily positioned, the center column is removable and reversible for positioning a camera upside down and low to the ground for low-perspective and macro photography. The included short center column provides low positioning with a wide leg spread for added stability.

  • Built-in hollow ball for center column angle adjustment
  • Included removable, reversible center column
  • Ballast hook
  • Central locking control system knob
  • Independent leg spread

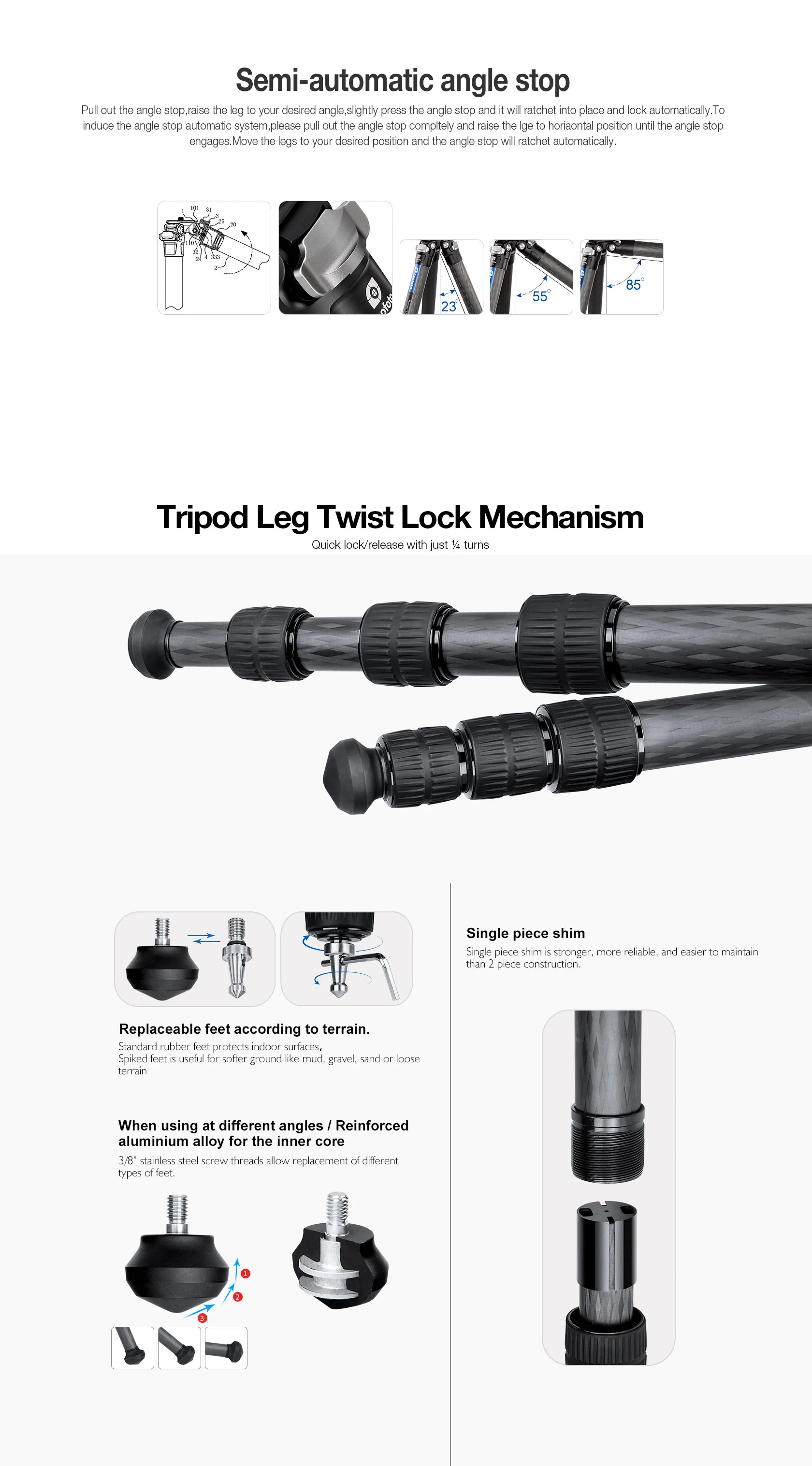

  • Three leg stop positions: 23 °, 55 °, and 85°

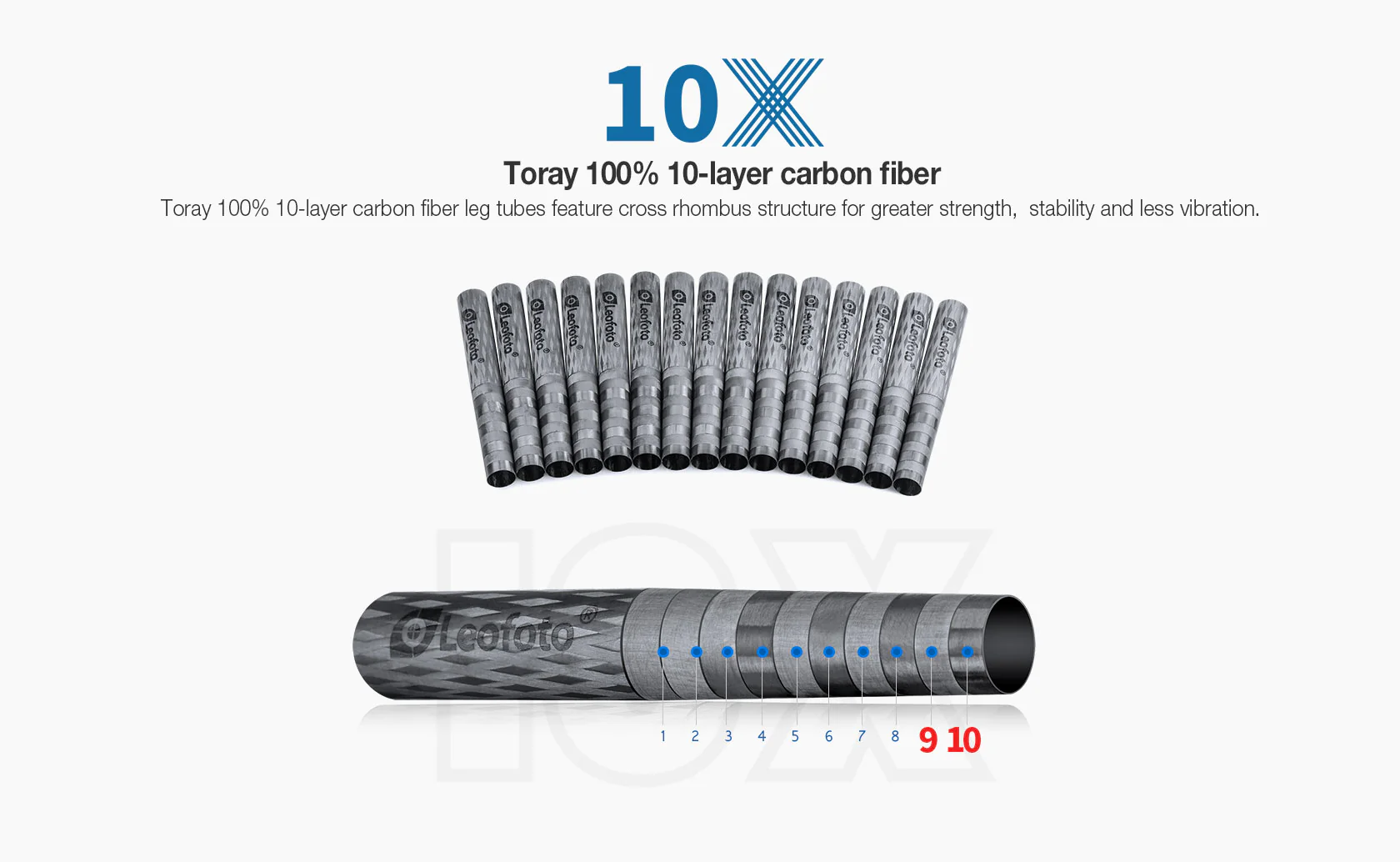

  • 10-layer Toray carbon fiber leg tubes: 22/19/16mm
  • 3/8"-16 mounting stud screw
  • 6061-T6 CNC-machined aircraft-grade aluminum components
  • 3/8"-16 and 1/4"-20 accessory mounting sockets

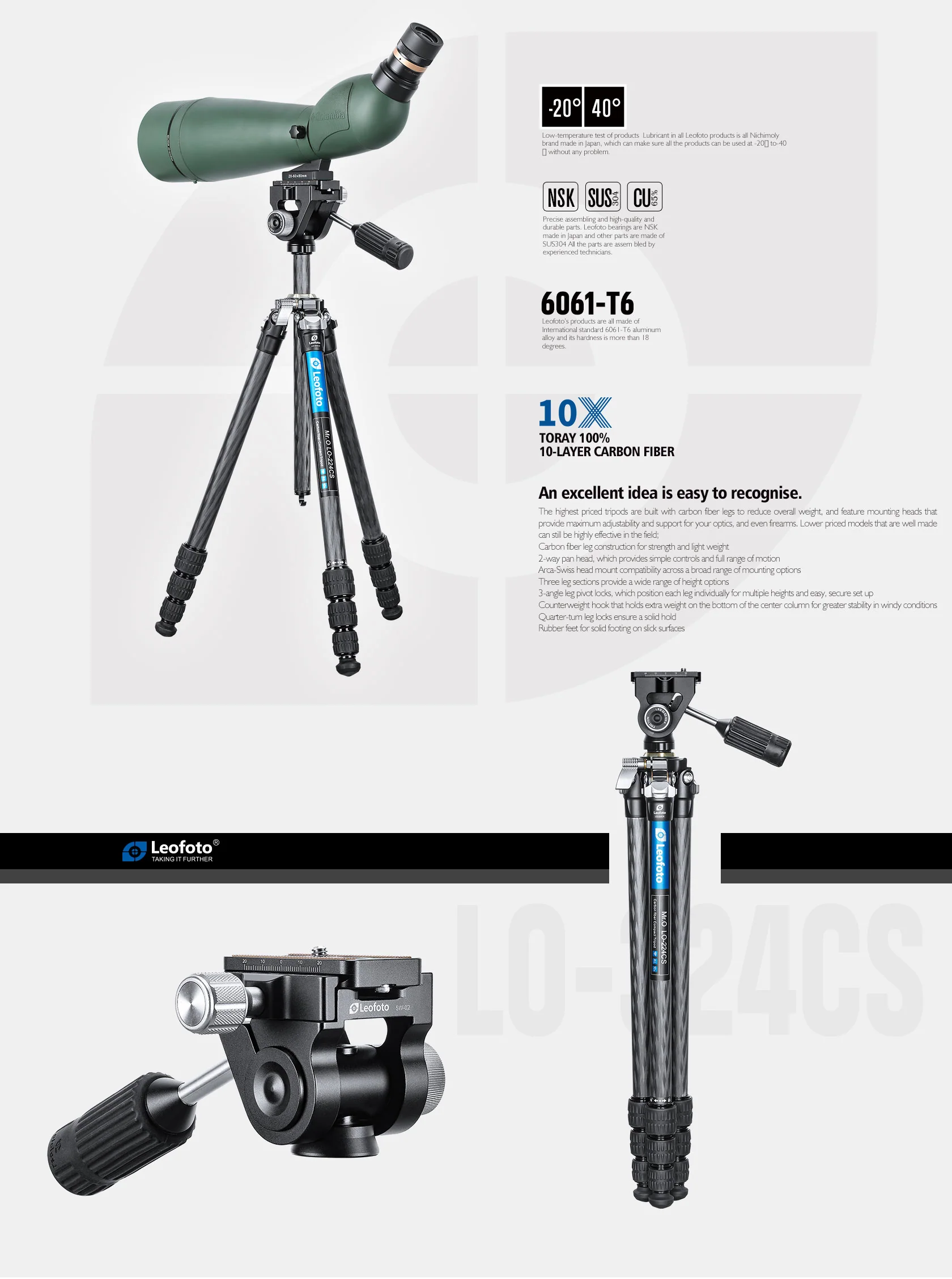

The Leofoto SW-02 Mini Fluid Head for Binoculars and Camera can do 360° panning and 90°/75° tilting by controlling the handle and there is a tension control knob on the side to adjust the friction.  Included with the SW-02 is a 70mm Q-R Plate.

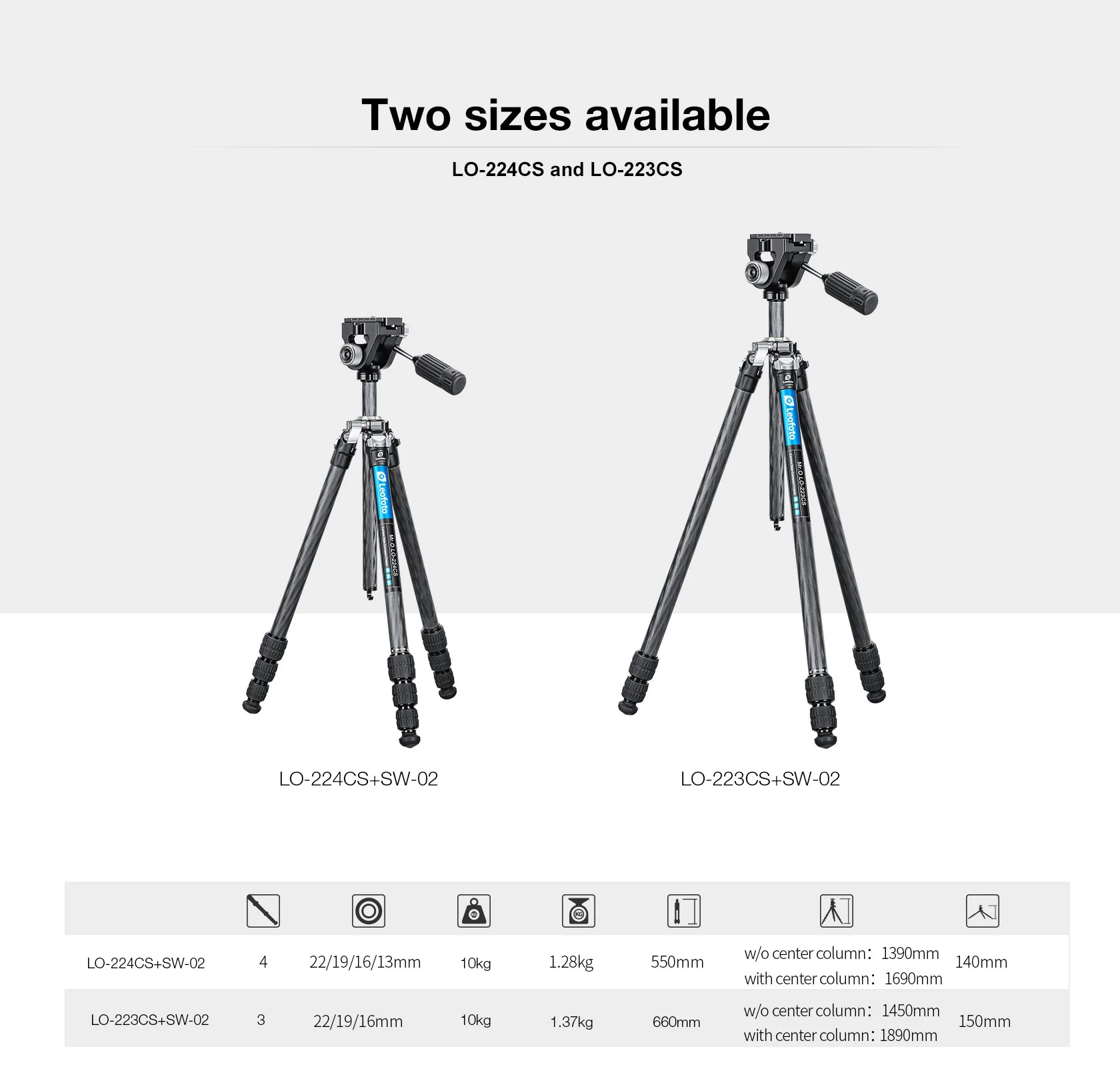

LO-223CS + SW-02:
Max. height with center column: 1890mm / 74.41in
Max. height w/o center column: 1450mm / 57in
Folded length: 660mm / 25.98in
Leg Section : 4
Min. height: 150mm / 5.9in
Max load: 10kg / 22lb
Weight: 1.37kg / 3lb

Leofoto LO-224CS (4 Leg Section) CF Tripod:

The Leofoto LO Mr. O Series Carbon Fiber Tripod with Built-In Hollow Ball is a lightweight and versatile tripod featuring a hollow ball design that allows the center column to be free of the limitation from linear vertical movement, adjusting its angle freely like a ball head. This adjustable center column positioning works along with the independent leg spread to allow quick leveling of a tripod head when shooting on uneven terrain. In addition to being easily positioned, the center column is removable and reversible for positioning a camera upside down and low to the ground for low-perspective and macro photography. The included short center column provides low positioning with a wide leg spread for added stability.

  • Built-in hollow ball for center column angle adjustment
  • Included removable, reversible center column
  • Ballast hook
  • Central locking control system knob
  • Independent leg spread
  • Three leg stop positions: 23 °, 55 °, and 85°
  • 10-layer Toray carbon fiber leg tubes: 22/19/16/13mm
  • 3/8"-16 mounting stud screw
  • 6061-T6 CNC-machined aircraft-grade aluminum components
  • 3/8"-16 and 1/4"-20 accessory mounting sockets
The Leofoto SW-02 Mini Fluid Head for Binoculars and Camera can do 360° panning and 90°/75° tilting by controlling the handle and there is a tension control knob on the side to adjust the friction.  Included with the SW-02 is a 70mm Q-R Plate.

LO-224CS + SW-02:
Max. height with center column: 1690mm / 66.53in
Max. height w/o center column: 1390mm / 54.72in
Folded length: 550mm / 21.65in
Leg Section : 3
Min. height: 140mm / 5.51in
Max load: 10kg / 22lb
Weight: 1.28kg / 2.82lb
Select Style
From $94.85

Original: $271.00

-65%
Leofoto LO-223CS/LO-224CS + SW-02 Carbon Fiber Tripod + 2-Way Pan Head Kit for Binoculars | 22 lb Max Load—

$271.00

$94.85

Product Information

Shipping & Returns

Description

Leofoto LO-223CS (3 Leg Section) CF Tripod:



The Leofoto LO Mr. O Series Carbon Fiber Tripod with Built-In Hollow Ball is a lightweight and versatile tripod featuring a hollow ball design that allows the center column to be free of the limitation from linear vertical movement, adjusting its angle freely like a ball head. This adjustable center column positioning works along with the independent leg spread to allow quick leveling of a tripod head when shooting on uneven terrain. In addition to being easily positioned, the center column is removable and reversible for positioning a camera upside down and low to the ground for low-perspective and macro photography. The included short center column provides low positioning with a wide leg spread for added stability.

  • Built-in hollow ball for center column angle adjustment
  • Included removable, reversible center column
  • Ballast hook
  • Central locking control system knob
  • Independent leg spread
  • Three leg stop positions: 23 °, 55 °, and 85°
  • 10-layer Toray carbon fiber leg tubes: 22/19/16mm
  • 3/8"-16 mounting stud screw
  • 6061-T6 CNC-machined aircraft-grade aluminum components
  • 3/8"-16 and 1/4"-20 accessory mounting sockets
The Leofoto SW-02 Mini Fluid Head for Binoculars and Camera can do 360° panning and 90°/75° tilting by controlling the handle and there is a tension control knob on the side to adjust the friction.  Included with the SW-02 is a 70mm Q-R Plate.

LO-223CS + SW-02:
Max. height with center column: 1890mm / 74.41in
Max. height w/o center column: 1450mm / 57in
Folded length: 660mm / 25.98in
Leg Section : 4
Min. height: 150mm / 5.9in
Max load: 10kg / 22lb
Weight: 1.37kg / 3lb

Leofoto LO-224CS (4 Leg Section) CF Tripod:

The Leofoto LO Mr. O Series Carbon Fiber Tripod with Built-In Hollow Ball is a lightweight and versatile tripod featuring a hollow ball design that allows the center column to be free of the limitation from linear vertical movement, adjusting its angle freely like a ball head. This adjustable center column positioning works along with the independent leg spread to allow quick leveling of a tripod head when shooting on uneven terrain. In addition to being easily positioned, the center column is removable and reversible for positioning a camera upside down and low to the ground for low-perspective and macro photography. The included short center column provides low positioning with a wide leg spread for added stability.

  • Built-in hollow ball for center column angle adjustment
  • Included removable, reversible center column
  • Ballast hook
  • Central locking control system knob
  • Independent leg spread
  • Three leg stop positions: 23 °, 55 °, and 85°
  • 10-layer Toray carbon fiber leg tubes: 22/19/16/13mm
  • 3/8"-16 mounting stud screw
  • 6061-T6 CNC-machined aircraft-grade aluminum components
  • 3/8"-16 and 1/4"-20 accessory mounting sockets
The Leofoto SW-02 Mini Fluid Head for Binoculars and Camera can do 360° panning and 90°/75° tilting by controlling the handle and there is a tension control knob on the side to adjust the friction.  Included with the SW-02 is a 70mm Q-R Plate.

LO-224CS + SW-02:
Max. height with center column: 1690mm / 66.53in
Max. height w/o center column: 1390mm / 54.72in
Folded length: 550mm / 21.65in
Leg Section : 3
Min. height: 140mm / 5.51in
Max load: 10kg / 22lb
Weight: 1.28kg / 2.82lb
